Description

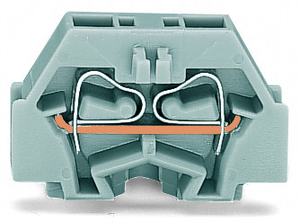

Space-saving, 2-conductor end tbwithout push-buttons, gray
View AllClose
Electrical Data
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 18 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup>®</sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm² / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm² / 28 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
Mechanical Data
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.026 MJ
- Weight: 1.418 g
Commercial data
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4045454910563
- Customs Tariff No.: 85369010000
The WAGO 260 series is a space-saving, gray feed-through terminal block with one deck and side marking slots, designed for one feed-through pole and two wires using CAGE CLAMP spring connections. It accommodates wire sizes from 0.08mm² to 1.5mm² (#28AWG to #16AWG) and supports a rated current of 18A. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with a width of 5mm, and is equivalent to model 260321.
