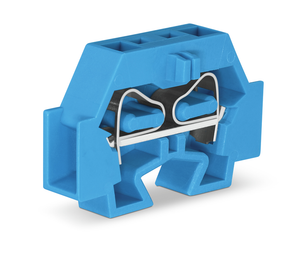

Space-saving, 2-conductor end terminal block; without push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 1.5 mm²; CAGE CLAMP; 1,50 mm²; blue.

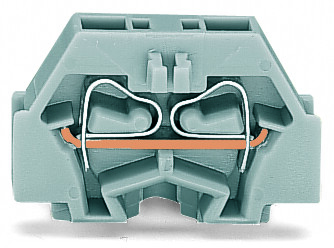

The WAGO 260 series space-saving neutral-through end terminal block is designed with a single deck and side marking slots, suitable for neutral-through pole (N) connections with two wires (1 clamp + 1 clamp) ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. It supports a rated current of 18A and features CAGE CLAMP spring connections. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with a width of 5mm, and is equivalent to model 260324.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP«
- country of origin sales organisation germany:
- CH
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 ª 1.5 mm / 28 ª 16 AWG
- fire load:
- 0.026 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 ª 1.5 mm / 28 ª 16 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- weight:
- 1.460 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Side-entry wiring
