Description
Space-saving, 2-conductor end terminal block; without protruding snap-in mounting foot; for terminal strips with snap-in mounting feet
View AllClose
Electrical Data
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm / 28 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 5 mm / 0.197 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
Mechanical Data
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Side marking
Material Data
- Color: green-yellow
- Fire load: 0.026 MJ
- Weight: 1.598 g
Commercial data
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918601597
- Customs Tariff No.: 85369010000

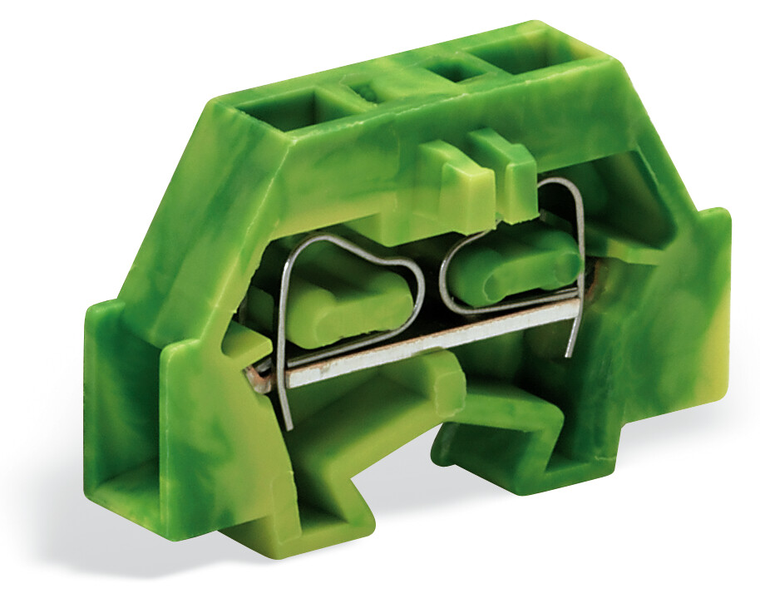

The WAGO 260 series is a space-saving feed-through terminal block designed for grounding/earthing applications. It features a single deck with side marking slots and is colored green-yellow. The terminal block supports one protective-earth connection for two wires using CAGE CLAMP spring connections, accommodating wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG. It can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with a width of 5mm, and is equivalent to model 260327.
