4-conductor terminal block; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm ; with 209-123 mounting carrier for DIN 35 rail
Electrical Data
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 18 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm / 28 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 8 mm / 0.315 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
Mechanical Data
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.042 MJ
- Weight: 2.540 g
Commercial data
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918592802
- Customs Tariff No.: 85369010000

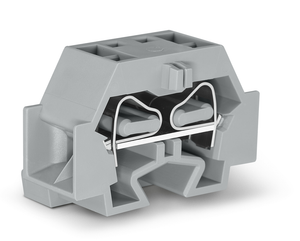

The WAGO 260 series feed-through terminal block is a gray, single-deck component with side marking slots, designed for one feed-through pole and accommodating four wires using two clamps on each side. It supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG, with a rated current of 18A. The terminal block features CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 260331.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.042 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.540 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Side-entry wiring
