Description

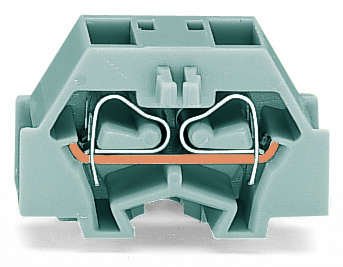

4-conductor terminal block; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm ; with 209-123 mounting carrier for DIN 35 rail Remarks Item properties Miscellaneous NameValueUnit Total number of connection points 4 Total number of potentials 1 Color gray Rated voltage (III / 3) [V] 400 V Rated impulse voltage (III / 3) [kV] 6 kV Rated current [A] 18 A Number of levels 1 Connection technology CAGE CLAMP Number of connection points connector 4 Actuation type Operating tool Connectable conductor materials Copper Solid conductor 0.08 1.5 mm / 28 16 AWG Fine-stranded conductor 0.08 1.5 mm / 28 16 AWG Strip length 8 9 mm / 0.31 0.35 Inch Type of wiring Side-entry wiring Design horizontal Marking level Side marking Fire load [MJ] 0.042 MJ Weight [g] 2.54 g Width 8 mm / 0.315 Inch Height from the surface 17 mm / 0.669 Inch Depth 25 mm / 0.984 Inch Mounting type Mounting flange
View AllClose
Electrical Data
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 18 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm / 28 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- Total number of connection points: 4
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 8 mm / 0.315 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
Mechanical Data
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
Material Data
- Color: light gray
- Fire load: 0.043 MJ
- Weight: 2.400 g
Commercial data
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918592840
- Customs Tariff No.: 85369010000
