Space-saving, 4-conductor end terminal block; without push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 1.5 mm²; CAGE CLAMP; 1,50 mm²; gray.

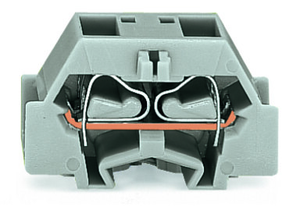

The WAGO 260 series is a space-saving, gray feed-through terminal block designed for efficient wiring with one deck and side marking slots. It features one feed-through pole accommodating four wires with two clamps each, suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. Rated for a current of 18A, it utilizes CAGE CLAMP spring connections for secure and reliable connections. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with an 8mm width, and is equivalent to model 260351.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP«
- country of origin sales organisation germany:
- CH
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 ª 1.5 mm / 28 ª 16 AWG
- fire load:
- 0.038 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) « Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- rated current:
- 18 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 ª 1.5 mm / 28 ª 16 AWG
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- weight:
- 2.522 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Side-entry wiring
