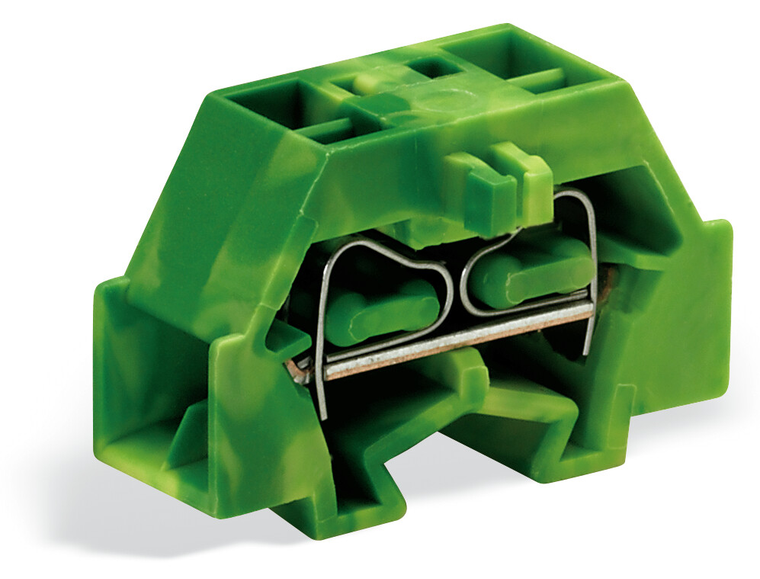

WAGO 260-357 4-Conductor End Terminal Block, Green/Yellow, Pack of 50
Wago
$62.50
4-conductor end terminal block; without push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 1.5 mm²; CAGE CLAMP; 1,50 mm²; green-yellow.
The WAGO 260 series is a space-saving feed-through terminal block designed for grounding/earthing applications, featuring a single deck with side marking slots. It is green-yellow in color and supports one protective-earth (1PE) connection with four wires using two clamps each (2+2). It accommodates wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG and utilizes CAGE CLAMP spring connections. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with an 8mm width, and is equivalent to model 260357.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.038 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- packaging type:
- Box
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.384 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Side-entry wiring
