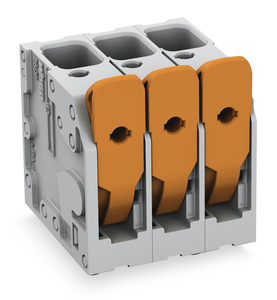

WAGO 2606-3103/010-000

SKU:

2606-3103/010-000

UPC:

MPN:

2606-3103/010-000

Condition:

New

actuation type:

Lever

actuator color:

Orange

approvals per:

UL 1059

clamping spring material:

Chrome-nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

90 ƒƒ‚°

connection technology:

Push-in CAGE CLAMP®

CONTACT MATERIAL:

Electrolytic copper (ECu)

CONTACT PLATING:

Tin

CONTINUOUS OPERATING TEMPERATURE:

-60 ƒƒ¢€¦ +105 ƒƒ‚°C

COUNTRY OF ORIGIN VKORG GERMANY:

PL

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85369010000

DEPTH:

24 mm / 0.945 inches

DRILLED HOLE DIAMETER WITH TOLERANCE:

2 (+0.1) mm

FINE STRANDED CONDUCTOR:

0.2 ƒƒ¢€¦ 10 mmƒƒ‚² / 24 ƒƒ¢€¦ 8 AWG

FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:

0.25 ƒƒ¢€¦ 6 mmƒƒ‚²

FINE STRANDED CONDUCTOR WITH TWIN FERRULE:

0.25 ƒƒ¢€¦ 2.5 mmƒƒ‚²

FINE STRANDED CONDUCTOR WITH UNINSULATED FERRULE:

0.25 ƒƒ¢€¦ 6 mmƒƒ‚²

FIRE LOAD:

0.000 MJ

FLAMMABILITY CLASS PER UL94:

V0

HEIGHT:

31 mm / 1.22 inches

HEIGHT FROM THE SURFACE:

27 mm / 1.063 inches

INSULATION MATERIAL:

Polyamide (PA66)

LEGEND RATINGS:

(III / 2) ƒƒ¢‰™ Overvoltage category III / Pollution degree 2

LIMIT TEMPERATURE RANGE:

-60 ƒƒ¢€¦ +105 ƒƒ‚°C

MATERIAL GROUP:

I

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

MOUNTING NOTE=

NOMINAL VOLTAGE II 2:

1000 V

NOMINAL VOLTAGE III 3:

800 V

NOTE MATERIAL DATA:

Information on material data can be found here

NUMBER OF SOLDER PINS PER POTENTIAL:

1

PCB CONTACT:

THT

PIN SPACING:

7.5 mm / 0.295 inches

POLE NUMBER:

3

PROCESSING TEMPERATURE:

-35 ƒƒ¢€¦ +60 ƒƒ‚°C

PRODUCT GROUP CODE:

4

RATED CURRENT:

41 A

RATED CURRENT CSA USE GROUP B:

31 A

RATED CURRENT CSA USE GROUP C:

31 A

RATED CURRENT UL USE GROUP B:

31 A

RATED CURRENT UL USE GROUP C:

31 A

RATED IMPULSE VOLTAGE III 2:

8 kV

RATED IMPULSE VOLTAGE III 3:

8 kV

RATED SURGE VOLTAGE II 2:

8 kV

RATED VOLTAGE CSA USE GROUP B:

600 V

RATED VOLTAGE CSA USE GROUP C:

600 V

RATED VOLTAGE III 2:

1000 V

RATED VOLTAGE UL USE GROUP B:

600 V

RATED VOLTAGE UL USE GROUP C:

600 V

RATINGS PER:

IEC/EN 60664-1

SOLDER PIN DIMENSIONS:

1.5 x 1.2 mm

SOLDER PIN LENGTH:

4 mm

SOLID CONDUCTOR:

0.2 ƒƒ¢€¦ 10 mmƒƒ‚² / 24 ƒƒ¢€¦ 8 AWG

STRIP LENGTH:

11 ƒƒ¢€¦ 13 mm / 0.43 ƒƒ¢€¦ 0.51 inches

VARIANTS:

Other pole numbers || Direct marking || Other colors || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

WEIGHT:

13.015 g

WIDTH:

25.35 mm / 0.998 inches
