Wago

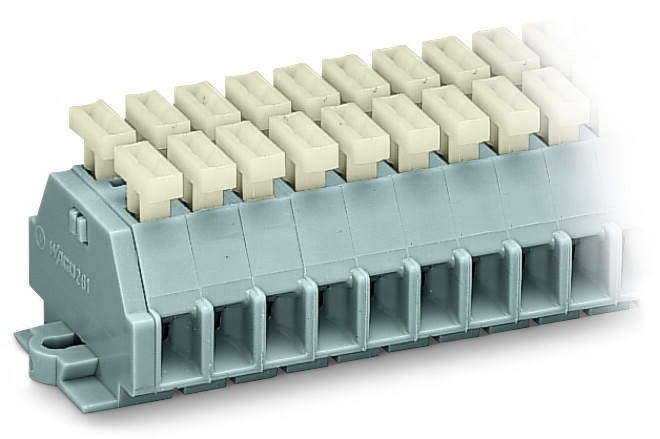

WAGO 261-106/341-000

(No reviews yet) Write a Review
SKU:
261-106/341-000
MPN:
283-402
Condition:
New
color:
Gray
country of origin sales organisation germany:
DE
fire load:
0.032 MJ
height:
13 mm / 0.512 inch
packaging type:
Box
rated current:
70 A
rated current ex e ii:
63 A
weight:
7.000 g
width:
12 mm / 0.472 inch
  • Wago 261-106/341-000
  • Wago 261-106/341-000
$6.37

Description

2-conductor terminal strip; on both sides with push-buttons; with fixing flanges; 6-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.

The WAGO 261 series feed-through terminal strip is a gray, 1-deck/level component with buttons on both sides, featuring 6 feed-through poles and 12 wire connections (6 clamps on each side). It supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #14AWG) and is rated for a current of 24A. The terminal strip uses CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 261106341000.
