Wago

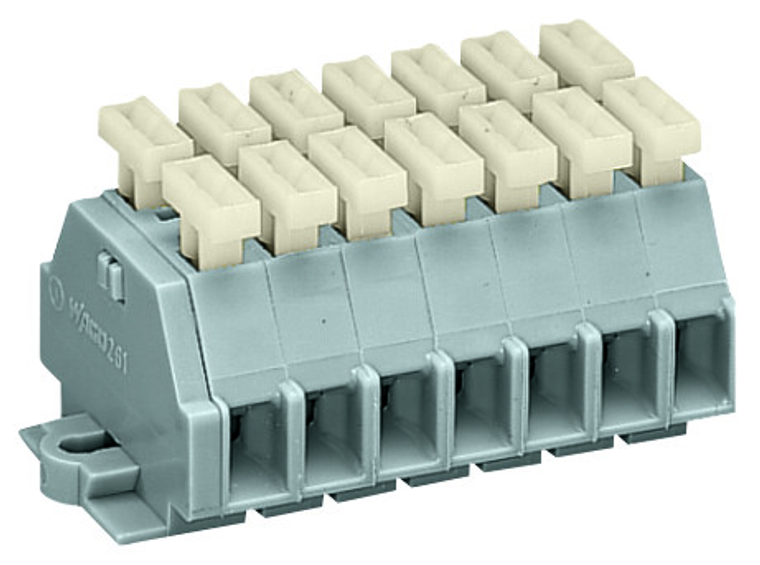

WAGO 261-107/341-000

SKU:

261-107/341-000

UPC:

MPN:

261-107/341-000

Condition:

New

actuation type:

Operating tool || Push-button, both side

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

28.1 mm / 1.106 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.495 MJ

flammability class per ul94:

V0

height from the surface:

23.3 mm / 0.917 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

module width:

6 mm / 0.236 inch

mounting type:

Mounting flange

nominal voltage iii 3:

500 V

packaging type:

Box

pole no:

7

rated current:

24 A

rated surge voltage iii 3:

6 kV

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

19.346 g

width:

56.1 mm / 2.209 inch

wiring direction:

Side-entry wiring
