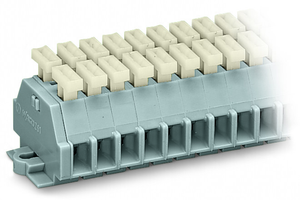

WAGO 261-152/341-000 2-conductor terminal strip; 2-pole; on both sides with push-buttons; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP®; 2,50 mm²; gray

SKU:

261-152/341-000

UPC:

MPN:

51138984

Condition:

New

actuation type:

Operating tool || Push-button, both side

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

28.1 mm / 1.106 inch

design:

Horizontal type

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.125 MJ

flammability class per ul94:

V0

height from the surface:

23.3 mm / 0.917 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

module width:

6 mm / 0.236 inch

mounting type:

Snap-in foot

nominal voltage iii 3:

500 V

packaging type:

Box

pole no:

2

rated current:

24 A

rated surge voltage iii 3:

6 kV

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

6.061 g

width:

15 mm / 0.591 inch

wiring direction:

Side-entry wiring
