WAGO 261-301/341-000 2-Conductor Terminal Block, 1-Pole, 24A, 500V, Pack of 50
Wago
$57.00
2-conductor terminal block; with push-buttons on both sides; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm with 209-123 mounting carrier for DIN 35 rail.

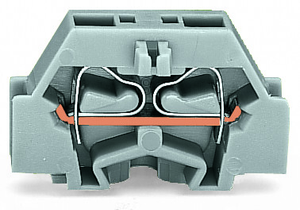

The WAGO 261 series feed-through terminal block is a gray, single-deck unit with buttons on both sides, fixing flanges, and lateral marking slots. It features one feed-through pole for two wires, accommodating wire sizes from 0.08mm² to 2.5mm² or #28AWG to #14AWG, and supports a rated current of 24A. The terminal block uses CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 261301341000.
- type of fuse:
- Cylindrical fuse 5 x 20 mm
- color:
- Gray
- country of origin sales organisation germany:
- CN
- fire load:
- 0.063 MJ
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- nominal voltage iii 3:
- 250 V
- operation status indicator:
- Without
- packaging type:
- Box
- rated current:
- 6.3 A
- ratings note:
- Electrical ratings are given by the fuse.
- weight:
- 3.970 g
- width:
- 6.1 mm / 0.24 inch
