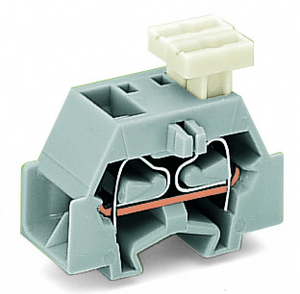

Space-saving, 4-conductor end terminal block; on one side with push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 261 series is a space-saving, gray feed-through terminal block designed for DIN rail or surface mounting with an accessory snap-in foot. It features a single deck with a button on one side and lateral marking slots. The terminal block accommodates one feed-through pole with four wires (two clamps on each side) for wire sizes ranging from 0.08mm² to 2.5mm² (#28AWG to #14AWG). It supports a rated current of 24A and utilizes CAGE CLAMP spring connections for secure and efficient wiring.
- actuation type:
- Operating tool || Push-button, one side
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.061 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pole no:
- 1
- rated current:
- 24 A
- rated surge voltage iii 3:
- 6 kV
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 3.897 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Side-entry wiring
