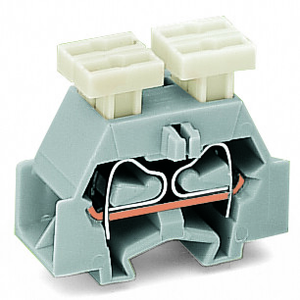

Space-saving, 4-conductor end terminal block; with push-buttons on both sides; without protruding snap-in mounting foot; for terminal strips with snap-in mounting feet.
The WAGO 261 series is a space-saving feed-through/thru ground/earthing end terminal block designed with one deck/level and buttons on both sides, featuring side/lateral marking slots. It is green-yellow in color and supports one grounding/protective-earth (1PE) connection for up to four wires using two clamps on each side (2+2 configuration). It accommodates wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #14AWG and utilizes CAGE CLAMP spring connections. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with a width of 10mm, and is equivalent to model number 261357342000.
- actuation type:
- Operating tool || Push-button, both side
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 28.1 mm / 1.106 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.070 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.3 mm / 0.917 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- packaging type:
- Box
- pole no:
- 1
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 4.180 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Side-entry wiring
