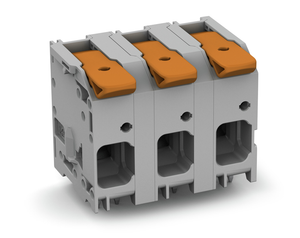

PCB terminal block; lever; 16 mm; Pin spacing 15 mm; 8-pole; Push-in CAGE CLAMP; 16,00 mm; gray
- PCB terminal strips with lever-actuated Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled conductors
- Intuitive and tool-free operation
- Several clamping units can be held open simultaneously convenient for terminating multi-core cables
- Testing can be performed both parallel and perpendicular to conductor entry
The WAGO component equivalent to 26161358 is a specific part or module used in electrical or automation systems. It is designed to perform similar functions and meet the same specifications as the original component, ensuring compatibility and seamless integration within existing setups. This equivalence allows for flexibility in sourcing and replacing parts without compromising the system's performance or reliability.
- actuation type:
- Lever
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- color of actuator:
- Orange
- conductor connection direction to pcb:
- 0
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 32 mm / 1.26 inch
- drilled hole diameter with tolerance:
- 1.7 (+0.1) mm
- fine stranded conductor:
- 0.75 25 mm / 18 4 AWG
- fine stranded conductor with insulated ferrule:
- 0.75 16 mm
- fine stranded conductor with twin ferrule:
- 0.75 6 mm
- fine stranded conductor with uninsulated ferrule:
- 0.75 16 mm
- fire load:
- 0.371 MJ
- flammability class per ul94:
- V0
- height:
- 37.2 mm / 1.465 inch
- height from the surface:
- 33.2 mm / 1.307 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 800 V
- number of solder pins per potential:
- 6
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 15 mm / 0.591 inch
- pole no:
- 8
- rated current:
- 76 A
- rated current csa use group b:
- 72 A
- rated current csa use group c:
- 72 A
- rated current csa use group d:
- 72 A
- rated current ul use group b:
- 78 A
- rated current ul use group c:
- 78 A
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group c:
- 300 V
- rated voltage csa use group d:
- 600 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 300 V
- rated voltage ul use group d:
- 600 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 1.2 x 1.2 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.75 16 mm / 18 4 AWG
- strip length:
- 18 20 mm / 0.71 0.79 inch
- weight:
- 91.705 g
- width:
- 116.5 mm / 4.587 inch
