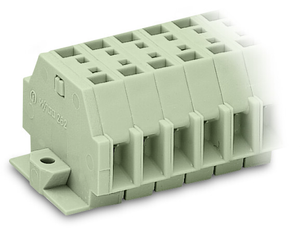

2-conductor terminal strip; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm ; also fits 210-154 aluminum rail or with 209-123 mounting carrier for DIN 35 rail; 12-pole
Electrical Data
- Rated voltage (III / 3): 630 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 4 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
- No. of poles: 12
- Total number of connection points: 24
- Total number of potentials: 12
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 88.4 mm / 3.48 inch
- Height from the surface: 23 mm / 0.906 inch
- Depth: 33.5 mm / 1.319 inch
- Module width: 7 mm / 0.276 inch
Mechanical Data
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.968 MJ
- Weight: 51.380 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918642415
- Customs Tariff No.: 85369010000
The WAGO 262 series feed-through terminal strip is a gray, 1-deck/level component with snap-in mounting feet, designed to handle 12 feed-through poles (24 wires with 12 clamps on each side). It supports wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG) and is rated for a current of 24A. Featuring CAGE CLAMP spring connections, it can be mounted on a DIN rail or surface using accessory snap-in foot mounting, and is equivalent to model 262162.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.968 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 7 mm / 0.276 inch
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 630 V
- packaging type:
- Box
- pole no:
- 12
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 51.380 g
- width:
- 87 mm / 3.425 inch
- wiring direction:
- Side-entry wiring
