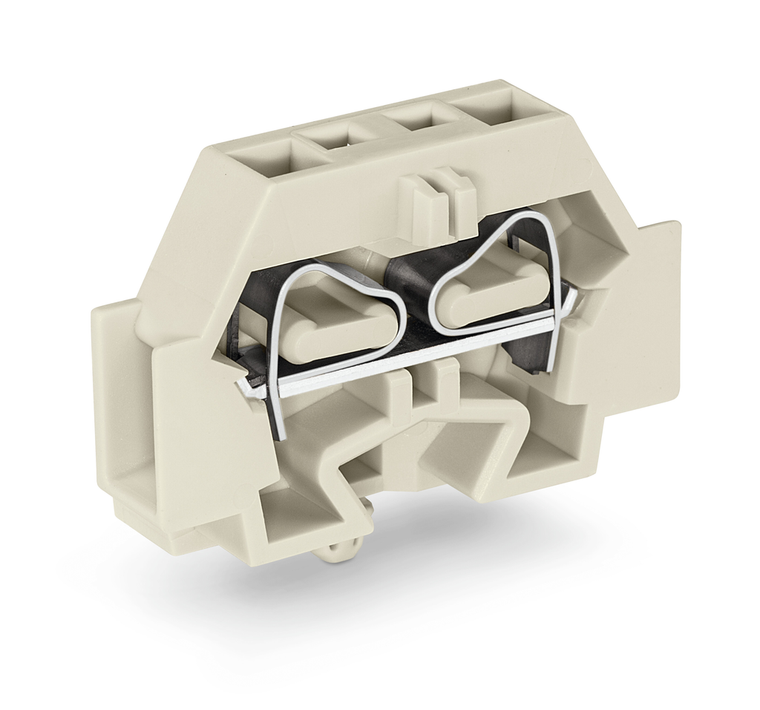

2-conductor Ex e II terminal block; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm ; also fits 210-154 aluminum rail or with 209-123 mounting carrier for DIN 35 rail; suitable for Ex e II applications
Electrical Data
- Rated voltage EN (Ex e II): 550 V
- Rated current (Ex e II): 23 A
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.5 4 mm / 20 12 AWG
- Fine-stranded conductor: 0.5 4 mm / 20 12 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 7 mm / 0.276 inch
- Height from the surface: 23 mm / 0.906 inch
- Depth: 33.5 mm / 1.319 inch
Mechanical Data
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Side marking
Material Data
- Color: light gray
- Fire load: 0.079 MJ
- Weight: 4.208 g
Commercial data
- Packaging type: BOX
- Country of origin: CH
- GTIN: 4044918640060
- Customs Tariff No.: 85369010000
The WAGO 262 series feed-through terminal block is a light gray, single-deck component designed for Ex e II applications. It features snap-in mounting feet and side marking slots, accommodating one feed-through pole with two wires (one clamp each). Suitable for wire sizes ranging from 0.5mm² to 4mm² or #20AWG to #12AWG, it supports a rated current of 23A. The terminal block uses CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot, with a width of 7mm, equivalent to model 262180.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.078 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- packaging type:
- Box
- rated current ex e ii:
- 23 A
- rated voltage en ex e ii:
- 550 V
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 4.114 g
- width:
- 7 mm / 0.276 inch
- wiring direction:
- Side-entry wiring
