Description

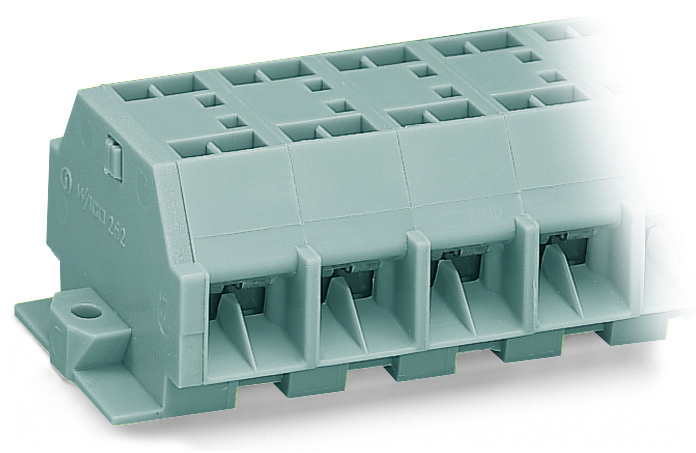

4-conductor terminal strip; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm also fits 210-154 aluminum rail or with 209-123 mounting carrier for DIN 35 rail; 7-pole
View AllClose
Electrical Data
- Rated voltage (III / 3): 630 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 32 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 4 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 4 mm / 28 12 AWG
- Strip length: 9 10 mm / 0.35 0.39 inch
- No. of poles: 7
- Total number of connection points: 28
- Total number of potentials: 7
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 88.4 mm / 3.48 inch
- Height from the surface: 23 mm / 0.906 inch
- Depth: 33.5 mm / 1.319 inch
- Module width: 12 mm / 0.472 inch
Mechanical Data
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.823 MJ
- Weight: 50.185 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918641715
- Customs Tariff No.: 85369010000
