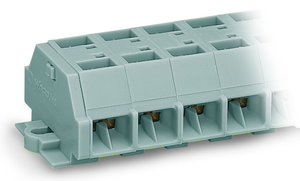

4-conductor terminal strip; without push-buttons; with snap-in mounting feet; 11-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ã; 4 mm²; CAGE CLAMP; 4,00 mm²; gray.

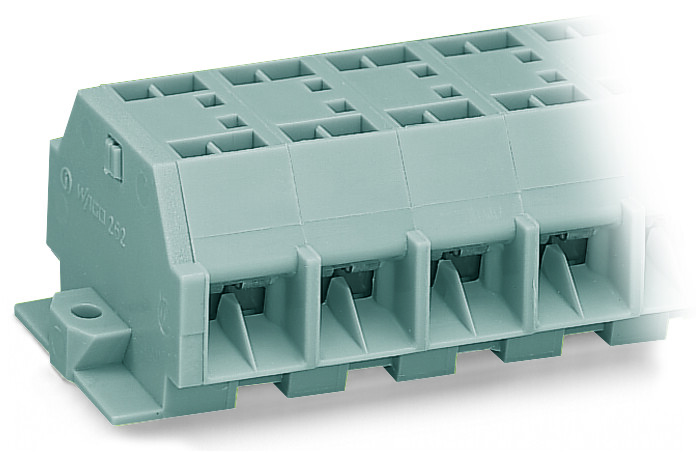

The WAGO 262 series feed-through terminal strip is a gray, 1-deck/level component with snap-in mounting feet, featuring 11 feed-through poles and 44 wire connections (22 clamps on each side). It supports wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG) and is rated for a current of 32A. The terminal strip uses CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using accessory snap-in foot mounting, equivalent to model 262261.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 1.275 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 12 mm / 0.472 inch
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 630 V
- packaging type:
- Box
- pole no:
- 11
- rated current:
- 32 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 77.000 g
- width:
- 135 mm / 5.315 inch
- wiring direction:
- Side-entry wiring
