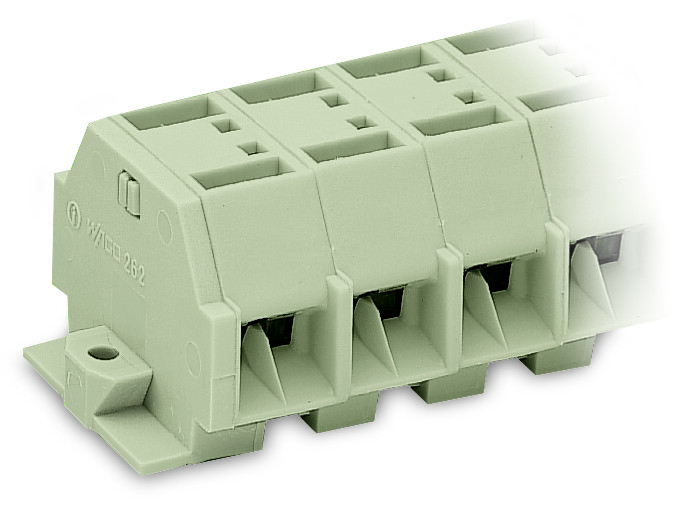

WAGO 262-287 4-Conductor Terminal Strip, 7-Pole, Ex e II, Snap-In Mounting, 0.6-1.2 mm Plate Thickness
Wago
$18.03
4-conductor terminal strip; without push-buttons; suitable for Ex e II applications; with snap-in mounting feet; 7-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ã; 4 mm²; CAGE CLAMP; 4,00 mm²; light gray.
The WAGO 262 series feed-through terminal strip is a light gray, 1-deck/level component with snap-in mounting feet, suitable for Ex e II applications. It features 7 feed-through poles accommodating 28 wires (14 clamps on each side) and supports wire sizes from 0.5mm² to 4mm² or #20AWG to #12AWG. Rated for a current of 30A, it utilizes CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot mounting. This terminal strip is equivalent to model 262287.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fire load:
- 0.831 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- module width:
- 12 mm / 0.472 inch
- mounting type:
- Snap-in foot
- packaging type:
- Box
- pole no:
- 7
- rated current ex e ii:
- 30 A
- rated voltage en ex e ii:
- 550 V
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 51.024 g
- width:
- 87 mm / 3.425 inch
- wiring direction:
- Side-entry wiring
