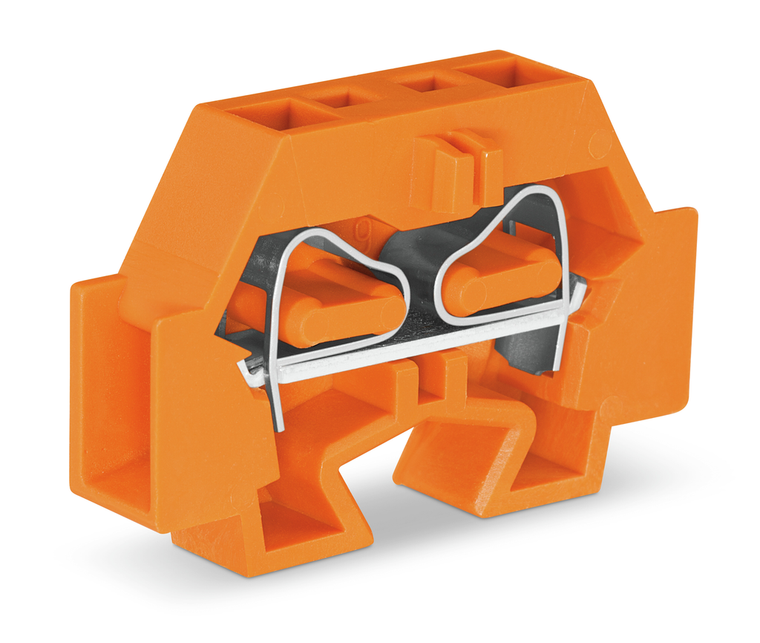

WAGO 262-326 2-Conductor End Terminal Block, 24A, 630V, 0.08-4mm², Pack of 50
Wago
$82.50
Space-saving, 2-conductor end terminal block; without push-buttons; without protruding snap-in mounting foot; 1-pole; for terminal strips with snap-in mounting feet; 4 mm²; CAGE CLAMP; 4,00 mm²; orange.

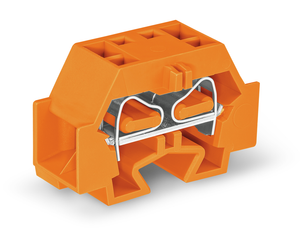

The WAGO 262 series is an orange, space-saving feed-through end terminal block with a single deck and side marking slots. It features one feed-through pole for two wires, accommodating wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG, and supports a rated current of 24A. The terminal block uses CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot mounting. The product is equivalent to model 262326 and has a width of 7mm.
- actuation type:
- Operating tool
- color:
- Orange
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth:
- 33.5 mm / 1.319 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.077 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 23.1 mm / 0.909 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 630 V
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 4.168 g
- width:
- 7 mm / 0.276 inch
- wiring direction:
- Side-entry wiring
