Wago

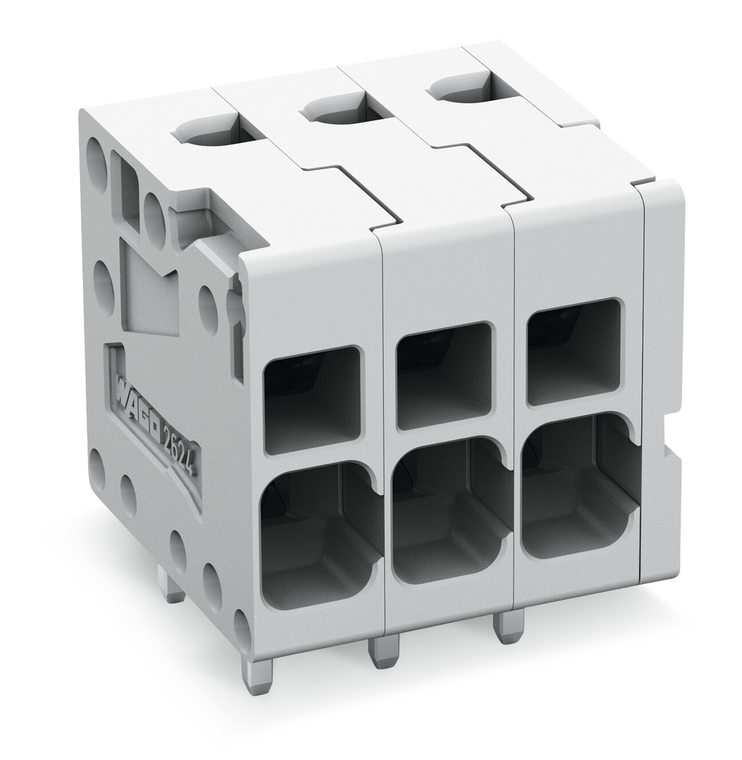

WAGO 2624-1104/000-004

SKU:

2624-1104/000-004

UPC:

MPN:

2624-1104/000-004

Condition:

New

actuation type:

Operating tool

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Black

conductor connection direction to pcb:

0

connection technology:

Push-in CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

16.3 mm / 0.642 inch

drilled hole diameter with tolerance:

1.3 (+0.1) mm

fine stranded conductor:

0.2 6 mm / 24 10 AWG

fine stranded conductor with insulated ferrule:

0.25 2.5 mm

fine stranded conductor with twin ferrule:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 2.5 mm

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

19.4 mm / 0.764 inch

height from the surface:

15.4 mm / 0.606 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mounting type:

Feed-through mounting

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

4

rated current:

41 A

rated current csa use group b:

26 A

rated current csa use group d:

0.208333333333333

rated current ul use group b:

26 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

400 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.8 x 1 mm

solder pin length:

4 mm

solid conductor:

0.2 6 mm / 24 10 AWG

strip length:

10 12 mm / 0.39 0.47 inch

weight:

6.402 g

width:

21.5 mm / 0.846 inch
