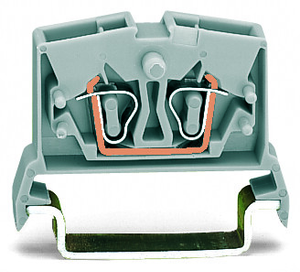

WAGO 264-125 2-conductor miniature through terminal block; 2.5 mm²; with test option; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; light gray

(No reviews yet) Write a Review
SKU:
264-125
MPN:
51123559
Condition:
New
actuation type:
Operating tool
color:
Light gray
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
CH
depth from upper edge of din rail:
24.5 mm / 0.965 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.075 MJ
flammability class per ul94:
V0
height:
38 mm / 1.496 inch
insulation material:
Polyamide (PA66)
marking level:
Center marking
mounting type:
DIN-35 rail
note conductor cross section:
12 AWG: THHN, THWN
packaging type:
Box
rated current ex e ii:
23 A
rated voltage en ex e ii:
690 V
solid conductor:
0.5 2.5 mm / 20 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
3.858 g
width:
6 mm / 0.236 inch
wiring direction:
Front-entry wiring
  • Wago 264-125
  • Wago 264-125
  • Wago 264-125
  • Wago 264-125
  • Wago 264-125
$1.40

Description

2-conductor miniature through terminal block; 2.5 mm²; with test option; suitable for Ex e II applications; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; light gray.

The WAGO 264 series feed-through miniature terminal block is a light gray, single-deck unit with a center marking slot, suitable for Ex e II applications. It features a test point and accommodates one feed-through pole with two wires (one clamp each). It supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #12AWG, with a rated current of 23A. The terminal block uses CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a 6mm width, equivalent to model 264125.
