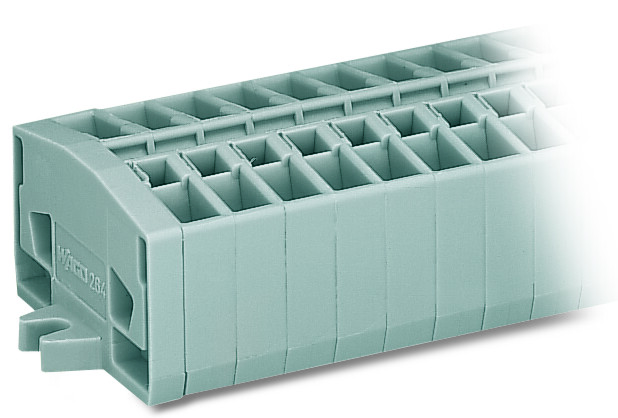

WAGO 264-157 2-Conductor Terminal Strip, 7-Pole, Snap-In Mounting, Cage Clamp, 0.08-2.5 mm², Gray
Wago
$11.28
2-conductor terminal strip; without push-buttons; with snap-in mounting feet; 7-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ã; 2.5 mm²; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 264 series feed-through terminal strip is a gray, 1-deck/level component with snap-in mounting feet, designed to handle 7 feed-through poles and 14 wires (7 clamps on each side). It supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #12AWG) and is rated for a current of 24A. Featuring CAGE CLAMP spring connections, it can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, and is equivalent to model 264157.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 32 mm / 1.26 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.585 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.1 mm / 0.87 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- module width:
- 6 mm / 0.236 inch
- mounting type:
- Snap-in foot
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- pole no:
- 7
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 28.978 g
- width:
- 49 mm / 1.929 inch
- wiring direction:
- Front-entry wiring
