Description

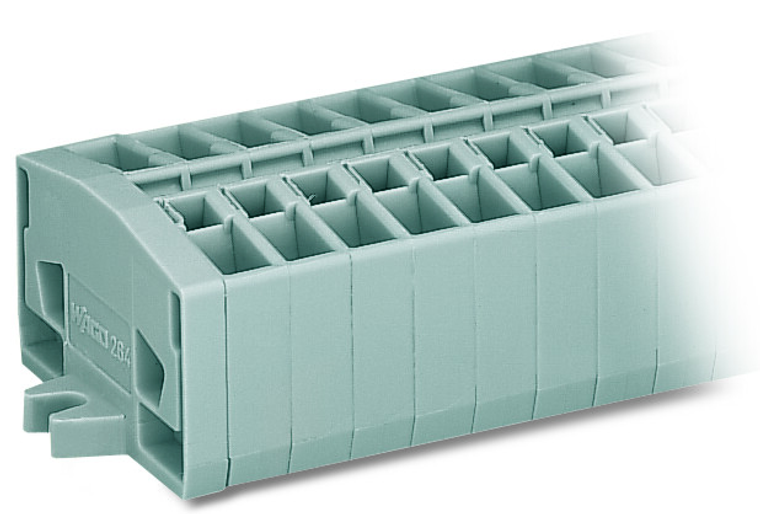

2-conductor terminal strip; with snap-in mounting feet; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm also fits 210-154 aluminum rail or with 209-123 mounting carrier for DIN 35 rail; 10-pole
View AllClose
Electrical Data
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 12 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- No. of poles: 10
- Total number of connection points: 20
- Total number of potentials: 10
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): 12 AWG: THHN, THWN
Geometrical Data
- Width: 67 mm / 2.638 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module width: 6 mm / 0.236 inch
Mechanical Data
- Design: horizontal
- Mounting type: Snap-in mounting foot
- Marking level: Center marking
Material Data
- Color: gray
- Fire load: 0.810 MJ
- Weight: 40.540 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918423694
- Customs Tariff No.: 85369010000
The WAGO 264 series feed-through terminal strip is a gray, 1-deck/level component with snap-in mounting feet, featuring 10 feed-through poles and 20 wires (10 clamps on each side). It supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #12AWG) and is rated for a current of 24A. The terminal strip uses CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot mounting. It is equivalent to model 264160.
