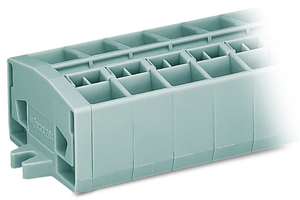

WAGO 264-205 4-Conductor Terminal Strip, 5-Pole, CAGE CLAMP®, 2.5 mm², Gray
Wago
$11.81
4-conductor terminal strip; with fixing flanges; for screw or similar mounting types; Fixing hole 3.2 mm ; 5-pole
Electrical Data
- Rated voltage (III / 3): 800 V
- Rated impulse voltage (III / 3): 8 kV
- Rated current: 24 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 12 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- No. of poles: 5
- Total number of connection points: 20
- Total number of potentials: 5
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): 12 AWG: THHN, THWN
Geometrical Data
- Width: 66 mm / 2.598 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module width: 10 mm / 0.394 inch
Mechanical Data
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Center marking
Material Data
- Color: gray
- Fire load: 0.628 MJ
- Weight: 33.300 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918418690
- Customs Tariff No.: 85369010000
The WAGO 264 series feed-through terminal strip is a gray, 1-deck terminal block with five feed-through poles, accommodating up to 20 wires with 10 clamps on each side. It supports wire sizes from 0.08mm² to 2.5mm² or #28AWG to #12AWG, and is rated for a current of 24A. The terminal strip features CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 264205.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 32 mm / 1.26 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.628 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.1 mm / 0.87 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- module width:
- 10 mm / 0.394 inch
- mounting type:
- Mounting flange
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- pole no:
- 5
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 33.300 g
- width:
- 66 mm / 2.598 inch
- wiring direction:
- Front-entry wiring
