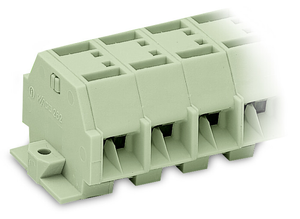

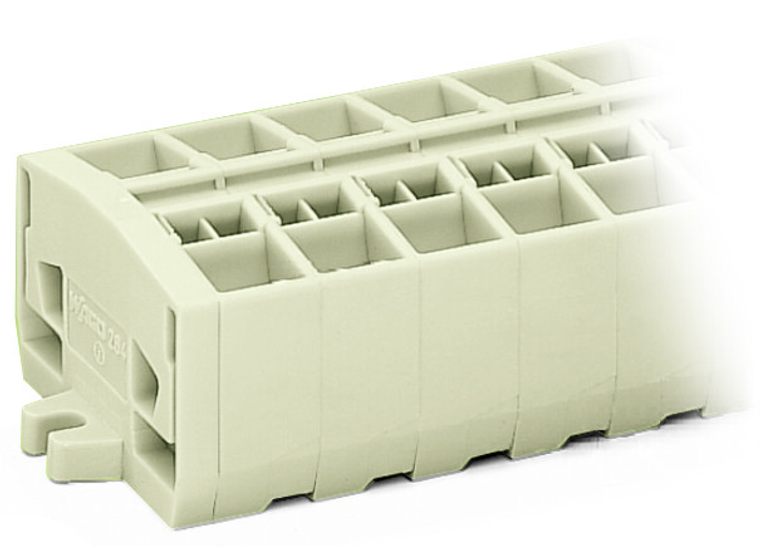

4-conductor Ex e II terminal strip; with fixing flanges; for screw or similar mounting types; Fixing hole 3.2 mm suitable for Ex e II applications; 3-pole
Electrical Data
- Rated voltage EN (Ex e II): 690 V
- Rated current (Ex e II): 23 A
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 2.5 mm / 28 12 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 12 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- No. of poles: 3
- Total number of connection points: 12
- Total number of potentials: 3
- Number of levels: 1
- Type of wiring: Front-entry wiring
- Note (conductor cross-section): 12 AWG: THHN, THWN
Geometrical Data
- Width: 46 mm / 1.811 inch
- Height from the surface: 22.1 mm / 0.87 inch
- Depth: 32 mm / 1.26 inch
- Module width: 10 mm / 0.394 inch
Mechanical Data
- Design: horizontal
- Marking level: Center marking
Material Data
- Color: light gray
- Fire load: 0.389 MJ
- Weight: 20.537 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918415675
- Customs Tariff No.: 85369010000
The WAGO 264 series feed-through terminal strip is a light gray, 1-deck/level component suitable for Ex e II applications. It features three feed-through poles and accommodates 16 wires with 8 clamps on each side, supporting wire sizes from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal strip is rated for a current of 23A and utilizes CAGE CLAMP spring connections. It has a 3.2mm fixing hole for mounting and is equivalent to model 264233.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 32 mm / 1.26 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.389 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.1 mm / 0.87 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- module width:
- 10 mm / 0.394 inch
- mounting type:
- Mounting flange
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- pole no:
- 3
- rated current ex e ii:
- 23 A
- rated voltage en ex e ii:
- 690 V
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 20.537 g
- width:
- 46 mm / 1.811 inch
- wiring direction:
- Front-entry wiring
