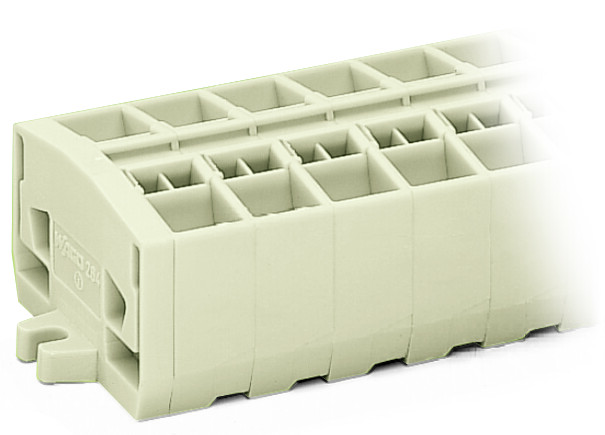

WAGO 264-238
Wago
$18.98
4-conductor terminal strip; without push-buttons; suitable for Ex e II applications; with fixing flanges; 8-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 2.5 mm²; CAGE CLAMP; 2,50 mm²; light gray.
The WAGO 264 series feed-through terminal strip is a light gray, 1-deck/level component suitable for Ex e II applications, featuring 8 feed-through poles and accommodating 32 wires with 16 clamps on each side. It supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #12AWG) and is rated for a current of 23A. The terminal strip uses CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 264238.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth:
- 32 mm / 1.26 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.959 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.1 mm / 0.87 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- module width:
- 10 mm / 0.394 inch
- mounting type:
- Mounting flange
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- pole no:
- 8
- rated current ex e ii:
- 23 A
- rated voltage en ex e ii:
- 690 V
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 52.564 g
- width:
- 96 mm / 3.78 inch
- wiring direction:
- Front-entry wiring
