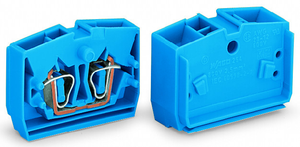

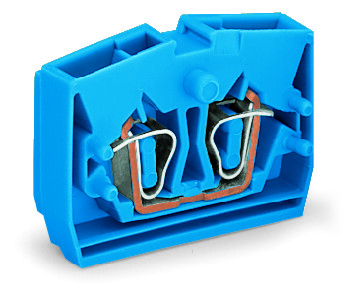

Wago 264-304

WAGO 264-304 2-conductor end terminal block; suitable for Ex i applications; without push-buttons; with fixing flange; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue

Wago
SKU:
51123569
$1.49
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor end terminal block; without push-buttons; suitable for Ex i applications; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue.

The WAGO 264 series neutral-through end terminal block is a blue, single-deck component with a center marking slot, designed for Ex I applications. It features a neutral-through pole (N) with two wire connections (1 clamp + 1 clamp) suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block supports a rated current of 24A and utilizes CAGE CLAMP spring connections for secure wiring. It includes a 3.2mm fixing hole for mounting and is equivalent to model 264304.

Additional Information
actuation type:
Operating tool
color:
Blue
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
CH
depth:
32 mm / 1.26 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.075 MJ
flammability class per ul94:
V0
height from the surface:
22.1 mm / 0.87 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center marking
mounting type:
Mounting flange
nominal voltage iii 3:
800 V
note conductor cross section:
12 AWG: THHN, THWN
packaging type:
Box
rated current:
24 A
rated surge voltage iii 3:
8 kV
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
3.852 g
width:
6 mm / 0.236 inch
wiring direction:
Front-entry wiring
