Wago 264-314

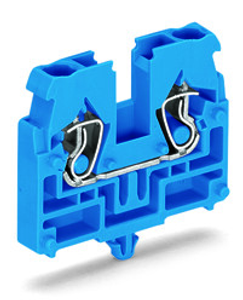

WAGO 264-314 2-conductor terminal block; suitable for Ex i applications; without push-buttons; with snap-in mounting foot; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue

Wago
SKU:
51123577
$1.49
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor terminal block; without push-buttons; suitable for Ex i applications; with snap-in mounting foot; 1-pole; for plate thickness 0.6 - 1.2 mm; Fixing hole 3.5 mm Ø; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue.

The WAGO 264 series neutral-through terminal block is a blue, single-deck component designed for Ex I applications. It features a snap-in mounting foot, a center marking slot, and accommodates two wires (one clamp each) for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. Rated for a current of 24A, it utilizes CAGE CLAMP spring connections and can be mounted on a DIN rail or surface using an accessory snap-in foot. This terminal block is equivalent to model 264314.

Additional Information
actuation type:
Operating tool
color:
Blue
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
CH
depth:
32 mm / 1.26 inch
design:
Horizontal type
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fire load:
0.075 MJ
flammability class per ul94:
V0
height from the surface:
22.1 mm / 0.87 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Center marking
mounting type:
Snap-in foot
nominal voltage iii 3:
800 V
note conductor cross section:
12 AWG: THHN, THWN
packaging type:
Box
rated current:
24 A
rated surge voltage iii 3:
8 kV
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
8 9 mm / 0.31 0.35 inch
weight:
3.890 g
width:
6 mm / 0.236 inch
wiring direction:
Front-entry wiring
