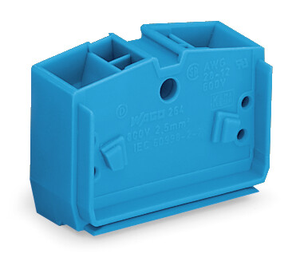

WAGO 264-324 2-conductor center terminal block; suitable for Ex i applications; without push-buttons; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue
Wago
$1.55
2-conductor center terminal block; without push-buttons; suitable for Ex i applications; 1-pole; 2.5 mm²; CAGE CLAMP; 2,50 mm²; blue.
The WAGO 264 series neutral-through center terminal block is a blue, single-deck component designed for Ex I applications. It features a center marking slot and accommodates two wires (one clamp each) ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. Rated for a current of 24A, it utilizes CAGE CLAMP spring connections and is equivalent to model 264324.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 32 mm / 1.26 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.074 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 22.1 mm / 0.87 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- Without
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 3.825 g
- width:
- 6 mm / 0.236 inch
- wiring direction:
- Front-entry wiring
