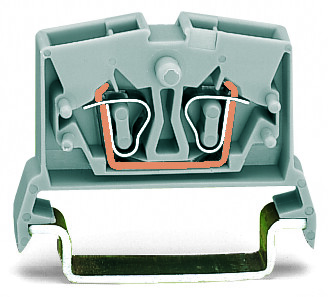

WAGO 264-711 2-conductor miniature through terminal block, 2.5 mm², with test option, center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP®, gray
Wago
$1.52
2-conductor miniature through terminal block; 2.5 mm²; with test option; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 264 series is a gray, feed-through miniature terminal block with a single deck and center marking slot, featuring a test point. It supports one feed-through pole and two wires with one clamp each, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. It has a rated current of 24A and utilizes CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 6mm, equivalent to model 264711.
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- main product function:
- Shield clamping saddle
- material:
- Steel V2A || Stainless steel
- packaging type:
- Box
- safety information 1:
- Note: Cannot be used for connecting ground conductors!
- weight:
- 12.000 g
- width:
- 11 mm / 0.433 inch
