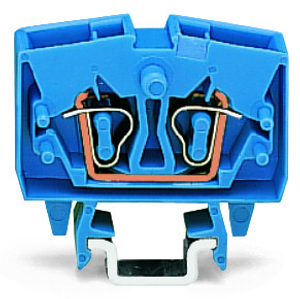

WAGO 264-724 4-conductor miniature through terminal block; 2.5 mm²; with test option; suitable for Ex i applications; center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; blue
Wago
$2.28
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 264-724 4-conductor miniature through terminal block; 2.5 mm²; with test option; suitable for Ex i applications; center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; blue
4-conductor miniature through terminal block; 2.5 mm²; with test option; suitable for Ex i applications; center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; blue.
The WAGO 264 series neutral-through miniature terminal block is designed for Ex I applications and features a center marking slot, test point, and CAGE CLAMP spring connections. It supports 4 wires (2 clamps + 2 clamps) for wire sizes ranging from 0.08mm² to 2.5mm² (#28AWG to #12AWG) and is rated for a current of 24A. The terminal block is blue, mounts on a DIN-15 rail with a 10mm width, and is equivalent to model 264724.
- actuation type:
- Operating tool
- color:
- Blue
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth from upper edge of din rail:
- 24.5 mm / 0.965 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.102 MJ
- flammability class per ul94:
- V0
- height:
- 32 mm / 1.26 inch
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-15 rail
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 6.032 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
