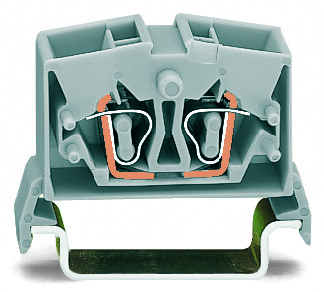

WAGO 264-731 4-conductor miniature through terminal block; 2.5 mm²; with test option; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray
Wago
$2.28
4-conductor miniature through terminal block; 2.5 mm²; with test option; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 2,50 mm²; gray.
The WAGO 264 series is a gray, feed-through miniature terminal block with a single deck and center marking slot, featuring a test point. It supports one feed-through pole and accommodates four wires using two clamps on each side, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. It has a rated current of 24A and utilizes CAGE CLAMP spring connections. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 10mm, equivalent to model 264731.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth from upper edge of din rail:
- 24.5 mm / 0.965 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.106 MJ
- flammability class per ul94:
- V0
- height:
- 38 mm / 1.496 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 800 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 24 A
- rated surge voltage iii 3:
- 8 kV
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 6.156 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Front-entry wiring
