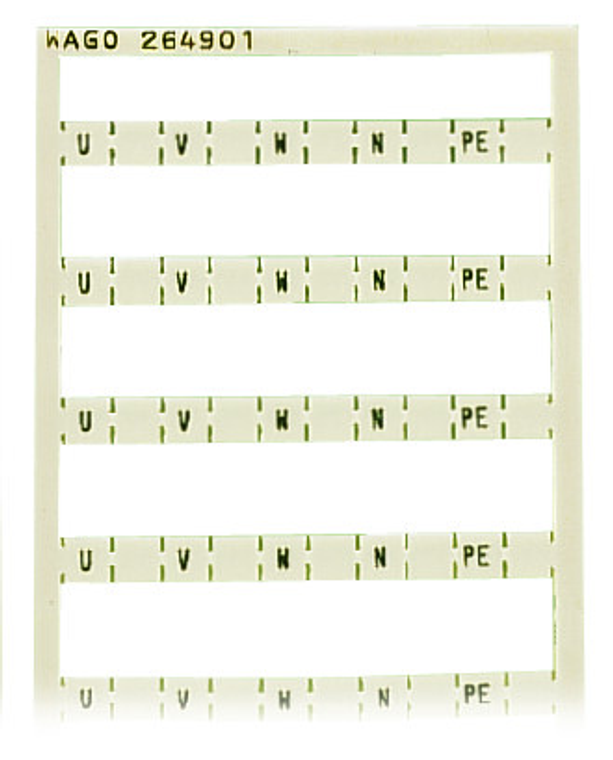

Miniature WSB Quick marking system; Horizontal marking; U, , V, , W, , N, , PE; 10 strips with 10 markers per card; Consecutive numbers/letters each strip.
The Labeled Mini-WSB marking card from WAGO (264 series) is designed for horizontal marking and includes labels marked with "U," "V," "W," "N," and "PE," interspersed with blank labels. It is white in color, features snap-on mounting, and contains 100 labels per card, arranged in 10 strips with 10 labels each. These labels are compatible with 5mm-wide terminal blocks.
- color:
- White
- country of origin sales organisation germany:
- DE
- fire load:
- 0.201 MJ
- marker strip width:
- 5 mm
- marker width:
- 5 mm
- marking:
- U, , V, , W, , N, , , :
- marking color:
- Black
- marking direction:
- Horizontal marking
- marking number:
- 10
- marking type:
- Symbol
- packaging type:
- Box
- pre assembly:
- 10 strips with 10 markers per card
- representation of the imprint:
- Consecutive symbols each strip
- smear resistance:
- EN 60998-1:2004
- uv resistance:
- EN 60068-2-5:2010 Procedure B
- weight:
- 6.250 g
