| Description | 3-conductor actuator LED terminal block; for PNP-(high-side) switching actuators; LED (red); 24 VDC |
| Remarks | |
| |
| Item properties | Miscellaneous | Name | Value | Unit | | Total number of connection points | 4 | | | Total number of potentials | 3 | | | Color | gray | | | Nominal voltage [V] | 24 | V | | Number of levels | 3 | | | Connection technology | CAGE CLAMP | | | Number of connection points connector | 4 | | | Actuation type | Operating tool | | | Connectable conductor materials | Copper | | | Solid conductor | 0.08 2.5 mm / 28 12 AWG | | | Fine-stranded conductor | 0.08 2.5 mm / 28 12 AWG | | | Strip length | 6 7 mm / 0.24 0.28 Inch | | | Note (conductor cross-section) | 12 AWG: THHN, THWN | | | Type of wiring | Front-entry wiring | | | Design | horizontal | | | Marking level | Side marking | | | Fire load [MJ] | 0.175 | MJ | | Weight [g] | 10.027 | g | | Width | 5 mm / 0.197 Inch | | | Height from upper-edge of DIN-35 rail | 39 mm / 1.535 Inch | | | Depth | 68 mm / 2.677 Inch | | | Type of mounting | DIN-35 x 15 carrier rail | | | Safety information 1 | LED power consumption: 4.8mA | | |
.

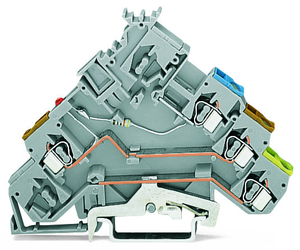

The WAGO 270 series terminal block is a triple-deck terminal block with a red LED indicator for 24Vdc, designed for PNP (high-side) switching applications. It features side marking slots and accommodates 3 conductors or 4 wires with 4 clamps, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. The terminal block uses CAGE CLAMP spring connections and is mounted on a DIN-35 rail with a width of 5mm. It is equivalent to the model number 270572281434 and comes in a gray color.
