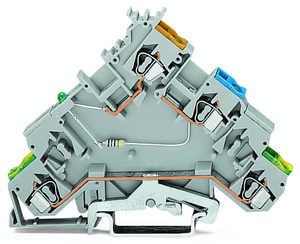

WAGO 270-574/281-483 4-Conductor Sensor Supply Terminal Block with LED Indicator
Wago
$18.50
4-conductor sensor supply terminal block; LED (green); 2.5 mm²; CAGE CLAMP; 2,50 mm²; orange.
The WAGO 270 series sensor supplementary terminal block is an orange, quadruple-deck terminal block with green LED indicators for 24Vdc. It features side marking slots and accommodates 4 conductors or 5 wires with 5 clamps, suitable for wire sizes ranging from 0.08mm² to 2.5mm² or #28AWG to #12AWG. It uses CAGE CLAMP spring connections and is designed for DIN-35 rail mounting with a 5mm width, equivalent to model 270574281483.
- actuation type:
- Operating tool
- color:
- Orange
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 39 mm / 1.535 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 1.405 MJ
- flammability class per ul94:
- V0
- height:
- 83 mm / 3.268 inch
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- note on rated current 1:
- LED power consumption: 4.8 mA
- packaging type:
- Box
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 11.510 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
