Wago

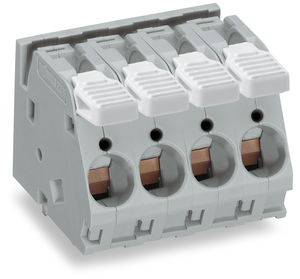

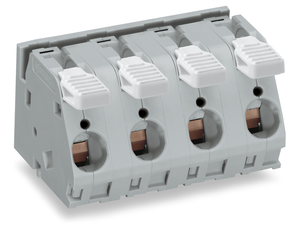

WAGO 2716-104

SKU:

2716-104

UPC:

MPN:

2716-104

Condition:

New

actuation type:

Lever

approvals per:

UL 1059

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Gray

conductor connection direction to pcb:

30

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

PL

depth:

30 mm / 1.181 inch

drilled hole diameter with tolerance:

1.6 (+0.1) mm

fine stranded conductor:

1.5 16 mm / 16 6 AWG

fine stranded conductor with insulated ferrule:

1.5 10 mm

fine stranded conductor with uninsulated ferrule:

1.5 10 mm

fire load:

0.603 MJ

flammability class per ul94:

V0

height:

33.3 mm / 1.311 inch

height from the surface:

28.8 mm / 1.134 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

4

packaging type:

Box

pcb contact:

THT

pin spacing:

10 mm / 0.394 inch

pole no:

4

rated current:

76 A

rated current ul use group b:

55 A

rated current ul use group c:

55 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group c:

150 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.95 x 1.2 mm

solder pin length:

4.5 mm

solid conductor:

1.5 16 mm / 16 6 AWG

strip length:

12 13 mm / 0.47 0.51 inch

weight:

35.708 g

width:

41.5 mm / 1.634 inch
