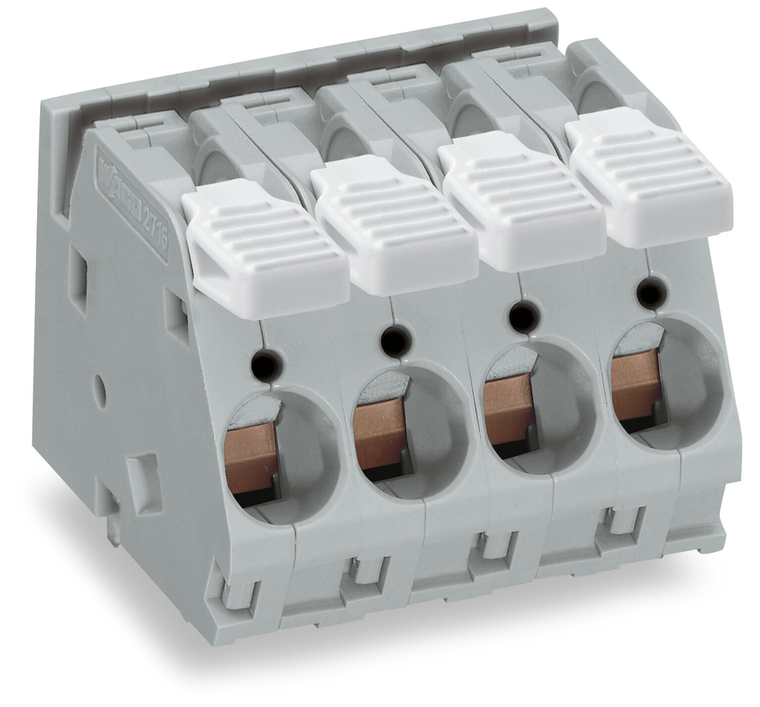

PCB terminal block; lever; 16 mm²; Pin spacing 10 mm; 4-pole; CAGE CLAMP; commoning option; 16,00 mm²; gray.
The WAGO component equivalent to 2716154 is a specific type of electrical connector or terminal block used in various electrical and electronic applications. It is designed to provide secure and reliable connections for wires and cables, ensuring efficient electrical conductivity and safety. This component is commonly used in industrial automation, control systems, and other electrical installations where dependable connections are crucial. The equivalent model number 2716154 indicates a specific configuration or specification that matches the requirements of certain applications, ensuring compatibility and performance consistency.
- actuation type:
- Lever
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 30
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 35 mm / 1.378 inch
- drilled hole diameter with tolerance:
- 1.6 (+0.1) mm
- fine stranded conductor:
- 1.5 16 mm / 16 6 AWG
- fine stranded conductor with insulated ferrule:
- 1.5 10 mm
- fine stranded conductor with uninsulated ferrule:
- 1.5 10 mm
- fire load:
- 0.710 MJ
- flammability class per ul94:
- V0
- height:
- 33.3 mm / 1.311 inch
- height from the surface:
- 28.8 mm / 1.134 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- number of solder pins per potential:
- 4
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 4
- rated current:
- 76 A
- rated current ul use group b:
- 55 A
- rated current ul use group c:
- 55 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group c:
- 150 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.95 x 1.2 mm
- solder pin length:
- 4.5 mm
- solid conductor:
- 1.5 16 mm / 16 6 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 41.891 g
- width:
- 41.5 mm / 1.634 inch
