WAGO 2734-118/107-000 18-Pole Female Lighting Connector, Plug-In Mount, 10A
Wago
$23.71

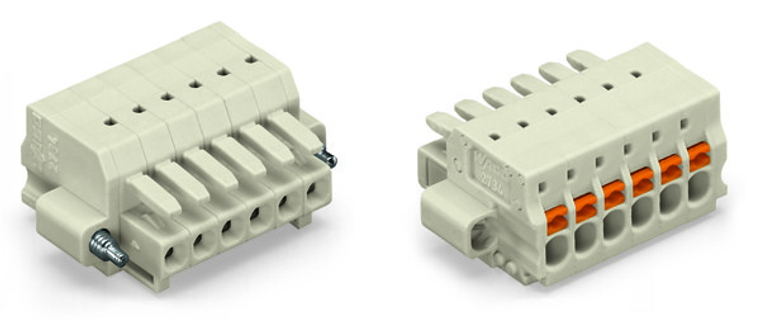

Female connector; with screw flange; 18-pole; with integrated push-buttons; Pin spacing 3.5 mm / 0.138 in; 100% protected against mismating; codable.
The WAGO component equivalent to 2734118107000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to facilitate secure and efficient connections in various electrical systems, ensuring optimal performance and safety. It is commonly used in industrial automation, building technology, and other sectors requiring robust electrical connections. The WAGO component is recognized for its high-quality standards and compatibility with a wide range of applications, making it a preferred choice for professionals in the field.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 20.4 mm / 0.803 inch
- fine stranded conductor:
- 0.2 1.5 mm / 24 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.305 MJ
- flammability class per ul94:
- V0
- height:
- 13.5 mm / 0.531 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Screw flange
- material group:
- I
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 18
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.2 1.5 mm / 24 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 16.188 g
- width:
- 72.5 mm / 2.854 inch
