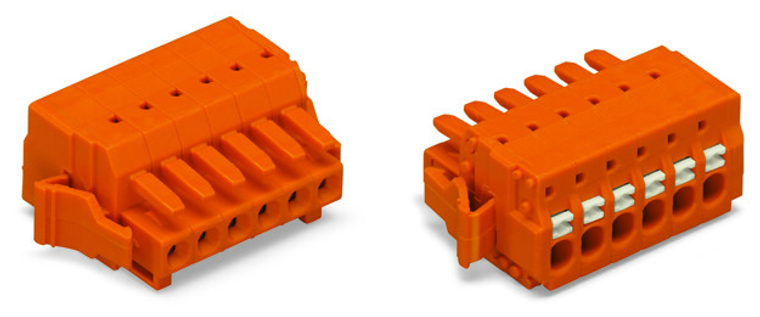

WAGO 2734-214/037-000 14-Pole Female Lighting Connector, Plug-In Mount, 10A
Wago
$18.55
1-conductor female connector; push-button; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.81 mm; 14-pole; 100% protected against mismating; Lateral locking levers; 1,50 mm²; orange.
The WAGO component equivalent to 2734214037000 is a specific part or product within WAGO's extensive range of electrical interconnection and automation solutions. This component is designed to meet particular technical specifications and requirements, ensuring compatibility and functionality within various electrical systems. WAGO is known for its high-quality products that provide reliable and efficient performance in industrial and commercial applications.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 20.4 mm / 0.803 inch
- fine stranded conductor:
- 0.2 1.5 mm / 24 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.272 MJ
- flammability class per ul94:
- V0
- height:
- 13.5 mm / 0.531 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking lever
- material group:
- I
- mismating protection:
- Yes
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.81 mm / 0.15 inch
- pole no:
- 14
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.2 1.5 mm / 24 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 13.700 g
- width:
- 64.34 mm / 2.533 inch
