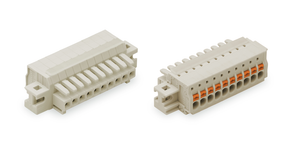

WAGO 2734-216/027-000 16-Pole Female Lighting Connector, Cable Mount, 10A
Wago
$22.87
1-conductor female connector; push-button; Push-in CAGE CLAMP; 1.5 mm²; Pin spacing 3.81 mm; 16-pole; 100% protected against mismating; clamping collar; 1,50 mm²; orange.
The WAGO component equivalent to 2734216027000 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable connections or operations.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 20.4 mm / 0.803 inch
- fine stranded conductor:
- 0.2 1.5 mm / 24 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.328 MJ
- flammability class per ul94:
- V0
- height:
- 14.7 mm / 0.579 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- Yes
- mounting type:
- Mounting flange || Feed-through mounting || Panel mounting
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Box
- pin spacing:
- 3.81 mm / 0.15 inch
- pole no:
- 16
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solid conductor:
- 0.2 1.5 mm / 24 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 15.715 g
- width:
- 75.76 mm / 2.983 inch
- with reinforcing strips:
- 1
