Power supply; Pro 2; 1-phase; 24 VDC output voltage; 10 A output current; TopBoost + PowerBoost; communication capability.

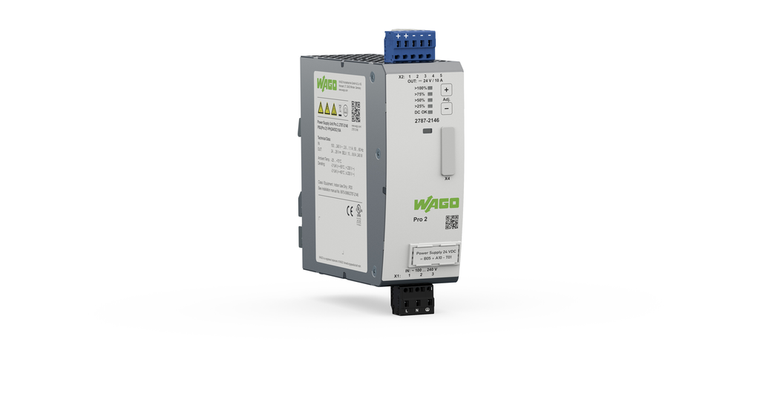

The Pro2 switch-mode AC/DC power supply unit (SMPS PSU) from WAGO's Pro 2 series offers a 24Vdc (SELV) output at 10A and 240W, with an input voltage range of 90-264Vac for single-phase AC. It features TopBoost and PowerBoost capabilities, optional communication modules, and is DNV approved. The unit includes CAGE CLAMP spring connections, is designed for DIN-35 rail mounting with a 50mm width, and has an IP20 rating. It operates in ambient temperatures from -25°C to +70°C and is equivalent to model number 27872146000030.
- communication:
- Communication interface, can be used with WAGO USB Communication Cable (750-923) or IO-Link Communication Module (2789-9080) or Modbus RTU Communication Module (2789-9015)
- conformity marking:
- CE
- connection technology:
- CAGE CLAMP«
- connection type 1:
- Input/output/signaling
- control deviation:
- «± 1 %
- country of origin sales organisation germany:
- CN
- current limitation:
- 1.1 x Io nom (typ.)
- default setting:
- DC 24 V
- depth from upper edge of din rail:
- 130 mm / 5.118 inch
- derating:
- ª3 %/K (> +55 C und Ue < AC 230 V): ª3 %/K (> +60 C und Ue « AC 230 V)
- efficiency typ:
- 95.2 % (230 VAC: 10 A: 25 C)
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm / 20 ª 16 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 2.5 mm / 20 ª 14 AWG
- fire load:
- 0.000 MJ
- height:
- 130 mm / 5.118 inch
- input current ii:
- «± 1.2 A (240 VAC: Nominal load): «± 2.7 A (100 VAC: Nominal load)
- input voltage range:
- AC 90 ª 264 V: DC 130 ª 240 V
- inrush current:
- «± 11 A (after 1 ms)
- internal fuse:
- T 6.3 A / 250 VAC
- isolation voltage pri sec ac:
- 3510 V
- isolation voltage sec gnd:
- DC 0.5 kV
- isolation voltage sec signal:
- DC 0.5 kV
- mains failure hold up time:
- « 25 ms (230 VAC)
- mounting type:
- DIN-35 rail
- mtbf:
- > 1,200,000 h (per IEC 61709)
- nominal input voltage ui nom:
- 1 x AC 100 ª 240 V
- nominal mains frequency range:
- 47 ª 63 Hz: 0 Hz
- nominal output current io nom:
- 10 A (24 VDC)
- nominal output power:
- 240 W
- nominal output voltage uo nom:
- DC 24 V (SELV)
- note dimensions:
- Height without connector || Height with connector: 166 mm
- open circuit proof:
- Yes
- operating altitude max:
- 5000 m
- output voltage range:
- DC 24 ª 28 V (adjustable)
- overload behavior:
- TopBoost/PowerBoost/Time-limited constant current mode (other overload behaviors can be set)
- overvoltage category:
- III («± 2000 m a. s.l.): II (> 2000 m a. s.l.)
- overvoltage protection secondary:
- Internal protective circuit || «± 35 VDC (in the event of a fault)
- packaging type:
- Box
- parallel operation:
- Yes
- phases:
- 1
- pollution degree:
- 2
- power factor correction pfc:
- Active
- power loss pl:
- «± 1 W (Standby): «± 2.2 W (No load): «± 12 W (230 VAC: Nominal load)
- powerboost:
- DC 15 A (5 s)
- protection class:
- I
- protection type:
- IP20 (per EN 60529)
- recommended backup fusing:
- 16 A (for USA/Canada: 15 A)
- relative humidity:
- 5 ª 96 % (no condensation permissible)
- required backup fusing:
- An external DC fuse is required for the DC input voltage.
- residual ripple:
- «± 70 mV (Peak-to-peak)
- resistance to reverse feed:
- «± DC 35 V
- series operation:
- Yes
- short circuit protected:
- Yes
- signaling:
- Optical status indication (DC OK: load: warning and error states) || Digital signal input and output (DI/DO)
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- standards specifications:
- EN 61010-1 || EN 61010-2-201 || EN 61204-3 || UL 61010-1 || UL 61010-2-201 || DNVGL || UL HazLoc
- strip length:
- 8 ª 9 mm / 0.31 ª 0.35 inch
- surrounding air temperature operation:
- -25 ª 70 C (Device starts at ª40 C (type-tested))
- surrounding air temperature storage:
- -40 ª 85 C
- topboost:
- Up to 600 %
- transient suppression primary:
- Yes
- wago connector:
- WAGO 721 Series
- weight:
- 1000.000 g
- width:
- 50 mm / 1.969 inch
