WAGO 279-915/281-411 Component terminal block; 2-conductor; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP; 1,50 mm²; gray
Wago
$13.17
Component terminal block; 2-conductor; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 1.5 mm²; CAGE CLAMP; 1,50 mm²; gray.

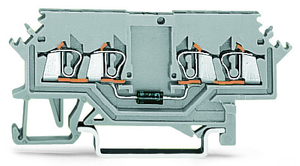

The WAGO 279 series component feed-through terminal block is a single-deck unit featuring a diode (1N4007) with the anode on the right side and a center marking slot. It is gray in color and designed for one feed-through pole with two wires, utilizing one clamp for each wire. It supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG and has a rated current of 0.5A. The terminal block uses CAGE CLAMP spring connections and is mounted on a DIN-35 rail, with dimensions of 35 x 15 or 35 x 7.5 mm and a width of 4mm. It is equivalent to the model number 279915281411.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 27 mm / 1.063 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.099 MJ
- flammability class per ul94:
- V0
- height:
- 52 mm / 2.047 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 0.5 A
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 4.620 g
- width:
- 4 mm / 0.157 inch
- wiring direction:
- Front-entry wiring
