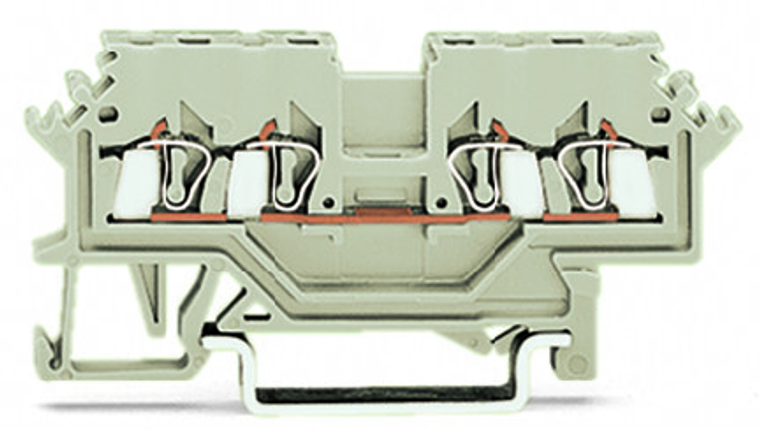

WAGO 279-990 4-Conductor Through Terminal Block, 1.5 mm², Ex e II, Lateral Marker Slots, DIN-Rail 35 x 15/7.5, CAGE CLAMP®, Light Gray
Wago
$3.96
4-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; lateral marker slots; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 1,50 mm²; light gray.
The WAGO 279 series feed-through terminal block is a light gray, single-deck component with side marking slots, designed for Ex e II applications. It features one feed-through pole accommodating four wires via two clamps on each side, suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. Rated for a current of 15A, it utilizes CAGE CLAMP spring connections and mounts on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 4mm. This terminal block is equivalent to the model 279990.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 27 mm / 1.063 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.100 MJ
- flammability class per ul94:
- V0
- height:
- 68 mm / 2.677 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current ex e ii:
- 15 A
- rated voltage en ex e ii:
- 550 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 5.674 g
- width:
- 4 mm / 0.157 inch
- wiring direction:
- Front-entry wiring
