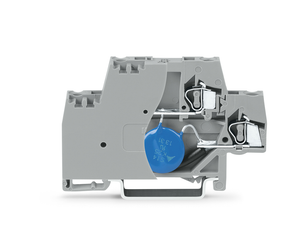

WAGO 280-502/281-588 terminal block with varistor and end plate
Wago
$36.92
Terminal block with varistor and end plate; with direct connection to DIN rail; 230 VAC.
The WAGO 280 series component feed-through terminal block is a double-deck terminal block with a built-in MOV varistor and end plate, designed for 0.08mm² to 2.5mm² wires or #28AWG to #14AWG. It features a single feed-through pole with two clamps, supports a rated voltage of 230Vac and a rated current of 20A, and utilizes CAGE CLAMP spring connections. The terminal block is mounted on a DIN-35 rail and has a width of 10mm, equivalent to model 280502281588.
- capacitance:
- 320 pF
- color:
- Gray
- connection points number:
- 2
- connection technology:
- CAGE CLAMP
- continuous operating voltage max:
- AC 275 V
- country of origin sales organisation germany:
- DE
- depth:
- 64 mm / 2.52 inch
- design:
- With end plate: with direct connection to DIN-rail
- discharge current max:
- 4.5 kA
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.265 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 39.5 mm / 1.555 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 8 20 s line:
- 1 kA
- nominal operating voltage:
- AC 230 V
- packaging type:
- Box
- protection level 8 20 s:
- ¤ AC 710 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 13.081 g
- width:
- 10 mm / 0.394 inch
