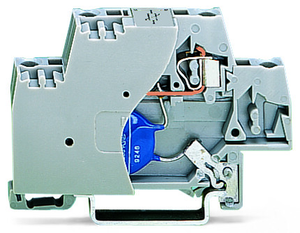

WAGO 280-502/281-593 terminal block with suppressor diode and end plate for direct DIN rail connection
Wago
$33.73
Terminal block with suppressor diode and end plate; with direct connection to DIN rail; 24 VAC.
The WAGO 280 series component feed-through terminal block is a double-deck terminal block with a built-in diode (1.5KE39CA TVS) and end plate, designed for DIN-35 rail mounting. It features one feed-through pole with two wires (one clamp each) and supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #14AWG). The terminal block is rated for 24Vac and 20A, utilizing CAGE CLAMP spring connections, and has a width of 10mm.
- capacitance:
- 2.4 nF
- color:
- Gray
- connection points number:
- 2
- connection technology:
- CAGE CLAMP
- continuous operating voltage max:
- AC 26 V
- country of origin sales organisation germany:
- DE
- depth:
- 64 mm / 2.52 inch
- design:
- With end plate: with direct connection to DIN-rail
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.265 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 39.5 mm / 1.555 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 8 20 s line:
- 143 A
- nominal operating voltage:
- AC 24 V
- packaging type:
- Box
- protection level 8 20 s:
- ¤ AC 70 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 12.081 g
- width:
- 10 mm / 0.394 inch
