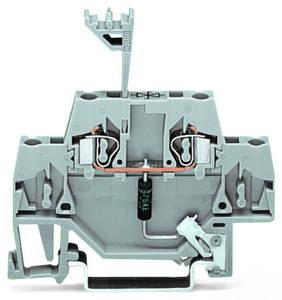

WAGO 280-502/281-607 Component Terminal Block; Double-Deck; Direct DIN-Rail Connection; BZW06-B TVS Diode; AC 115 V; CAGE CLAMP®; 2.5 mm²; Gray
Wago
$32.55
Component terminal blockdouble-deck w/ end plate and dir. connect. to rail, gray.
The WAGO 280 series component feed-through terminal block is a double-deck terminal block with a built-in diode (BZW06-B TVS) and an integrated end plate, making it closed on both sides. It features one feed-through pole for two wires, utilizing CAGE CLAMP spring connections, and supports wire sizes from 0.08mm² to 2.5mm² (#28AWG to #14AWG). The terminal block is rated for 115Vac and 20A, and is designed for mounting on a DIN-35 rail with dimensions of 35 x 15 or 35 x 7.5 mm, with a width of 5mm. It is equivalent to the model 280502281607.
- capacitance:
- 360 pF
- color:
- Gray
- connection points number:
- 2
- connection technology:
- CAGE CLAMP
- continuous operating voltage max:
- AC 133 V
- country of origin sales organisation germany:
- DE
- depth:
- 64 mm / 2.52 inch
- design:
- With direct connection to DIN-rail
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 0.172 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 58.5 mm / 2.303 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail
- nominal discharge current 10 1000 s line:
- 1.7 A
- nominal operating voltage:
- AC 115 V
- packaging type:
- Box
- protection level 10 1000 s:
- ¤ AC 384 V
- rated continuous current:
- 20 A
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 8.101 g
- width:
- 5 mm / 0.197 inch
