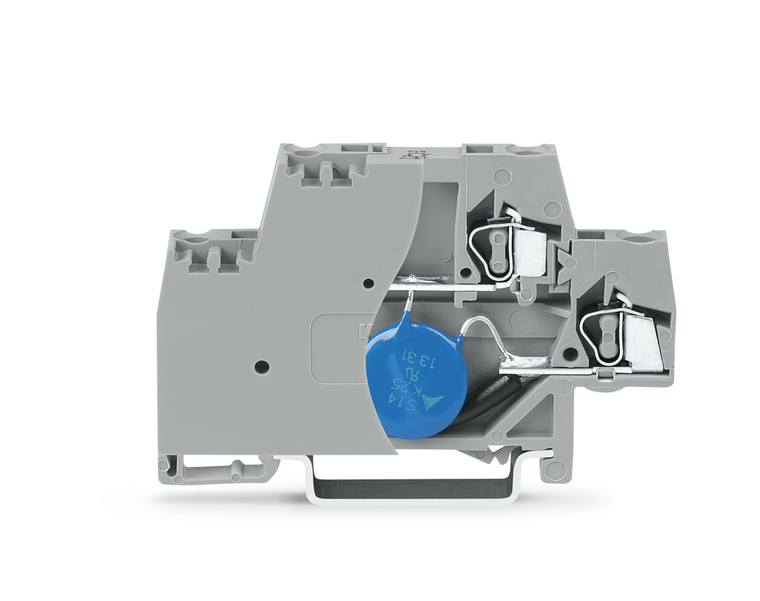

WAGO 280-504/281-583

(No reviews yet) Write a Review

Write a Review

×

WAGO 280-504/281-583

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

280-504/281-583

Condition:

New

capacitance:

2.8 nF

color:

Gray

connection points number:

4

connection technology:

CAGE CLAMP«

continuous operating voltage max:

DC 56 V

country of origin sales organisation germany:

DE

depth:

64 mm / 2.52 inch

design:

With end plate

discharge current max:

1 kA

fine stranded conductor:

0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 14 AWG

fire load:

1.336 MJ

flammability class per ul94:

V0

height from upper edge of din rail:

39.5 mm / 1.555 inch

insulation material:

Polyamide (PA66)

mounting type:

DIN-35 rail

nominal discharge current 8 20 s line:

300 A

nominal operating voltage:

DC 48 V

packaging type:

Box

protection level 8 20 s:

ƒƒ«ƒƒ± DC 135 V

rated continuous current:

20 A

solid conductor:

0.08 ƒƒ‡ª 2.5 mm / 28 ƒƒ‡ª 14 AWG

strip length:

8 ƒƒ‡ª 9 mm / 0.31 ƒƒ‡ª 0.35 inch

weight:

15.950 g

width:

10 mm / 0.394 inch
