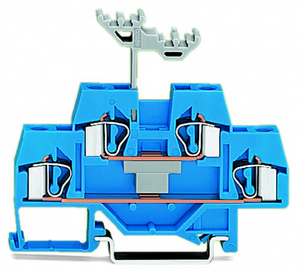

WAGO 280-526 Double-Deck Terminal Block
Wago
$9.26
Double-deck disconnect/through terminal block; with jumper slot; 4-conductor; 5 mm wide; gray/blue.
The WAGO 280 series terminal block is a double-deck feed-through and neutral-through terminal block with an additional jumper position on the lower level and a center marking slot. It features a 1 disconnect feed-through pole and neutral-through configuration, accommodating 2 x 2 wires with CAGE CLAMP spring connections. Suitable for wire sizes ranging from 0.08mm² to 2.5mm² (#28AWG to #12AWG), it is rated for a current of 10A and mounts on a DIN-35 rail. The terminal block is 5mm wide and is available in blue and gray, equivalent to model 280526.
- actuation type:
- Operating tool
- connectable conductor materials note:
- Terminating Aluminum ConductorsWAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm/12 AWG if WAGO Alu-Plus Contact Paste is used for termination.Alu-Plus Contact Paste Advantages:Automatically
- color:
- Blue/gray
- connectable conductor materials:
- Copper || Aluminum
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 81.5 mm / 3.209 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.182 MJ
- flammability class per ul94:
- V0
- height:
- 74 mm / 2.913 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 400 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 6 kV
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 11.300 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
